| Product Name: | 10W LED Down Light | 18W LED Down Light | 30W LED Down Light | 40W LED Down Light | 50W LED Down Light |
| Part Number: | FL-LDL10W-A | FL-LDL18W-A | FL-LDL30W-A | FL-LDL40W-A | FL-LDL50W-A |
| Input Voltage: | AC 220~240V 50/60Hz | ||||
| Power Consumption: | 10W | 18W | 30W | 40W | 50W |
| Light Source: |
Cree or Philips COB LEDs
|
||||
|
Driver:
|
Lifud
|
||||
|
Luminous Flux:
|
900lm
|
1600lm
|
2700lm
|
3600lm
|
5000lm
|
|
Color Temperature:
|
2700K(Warm) 3000K (Warm) 4000K (Neutral) 5700K (Cool) 6500K (Cool)
|
||||
|
CRI:
|
80Ra or 90Ra
|
||||
|
Optics:
|
Reflector
|
||||
|
Beam Angle:
|
24, 38, 55 Degrees (Optional)
|
||||
|
Dustproof Cap
|
Frosted or Clear PC Cover (Optional)
|
||||
|
IP Grade:
|
IP40
|
||||
|
Material:
|
Aluminum
|
||||
|

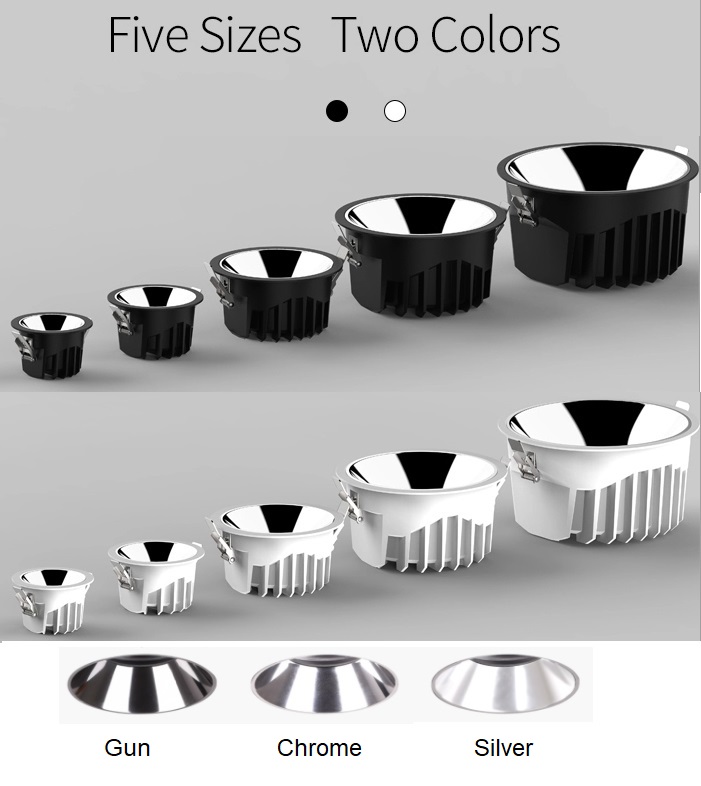

Reflector
|
Gun, Chrome, Silver (Optional)
|
||||
|
Finish:
|
White, Black (Optional);
|
||||
|
Cut-out:
|
Φ75mm
|
Φ90mm
|
Φ125mm
|
Φ165mm
|
Φ200mm
|
|
Physical Dimensions:
|
Φ86*55mm
|
Φ101*60mm
|
Φ140*73mm
|
Φ180*94mm
|
Φ214*110mm
|
